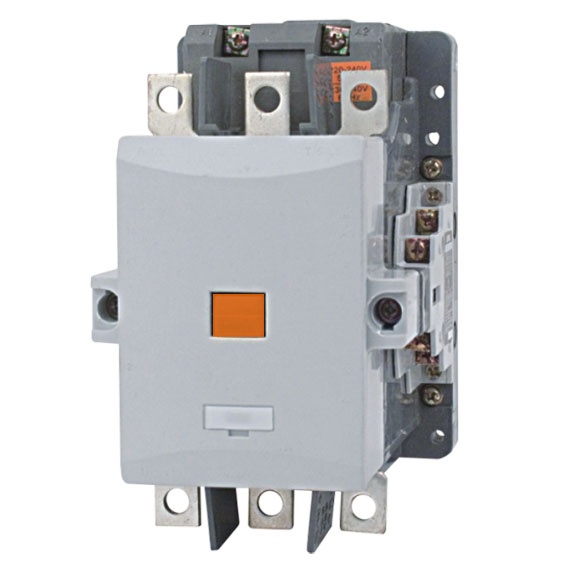

Three/Four Pole AC Contactors
Item: WLC1-100/125
Description: Ac contactor with 2 Aux. contact unit
Rated current 100A 125A
Poles: 3P 4P
Coil Voltage: 24V—575V (50Hz/60Hz)
Aux. contacts: 2NO+2NC 4NO 4NC 3NO+1NC 1NO+3NC
Thermal relay matched: WLH-100 WLH-150
Certificate: CE
|
Rated
current
|
AC3(IEC60947)
|
AC1 lth
|
Aux. contacts
|
Type
|
|
220V-240V
|
380V-440V
|
500-550V
|
690V
|
|
100A
|
30KW
105A
|
55KW
105A
|
55KW
85A
|
55KW
65A
|
150A
|
2NO+2NC
|
WLC1-100
|
|
125A
|
37KW
125A
|
60KW
120A
|
60KW
90A
|
60KW
70A
|
150A
|
2NO+2NC
|
WLC1-125
|
Voltage of AC Coil
|
Nominal voltage
|
AC50/60Hz
|
|
24V
|
24-25V
|
|
48V
|
48-50V
|
|
100/200V
|
100-240V
|
|
300V
|
265-347V
|
|
400V
|
380-450V
|
|
500V
|
440-575V
|
